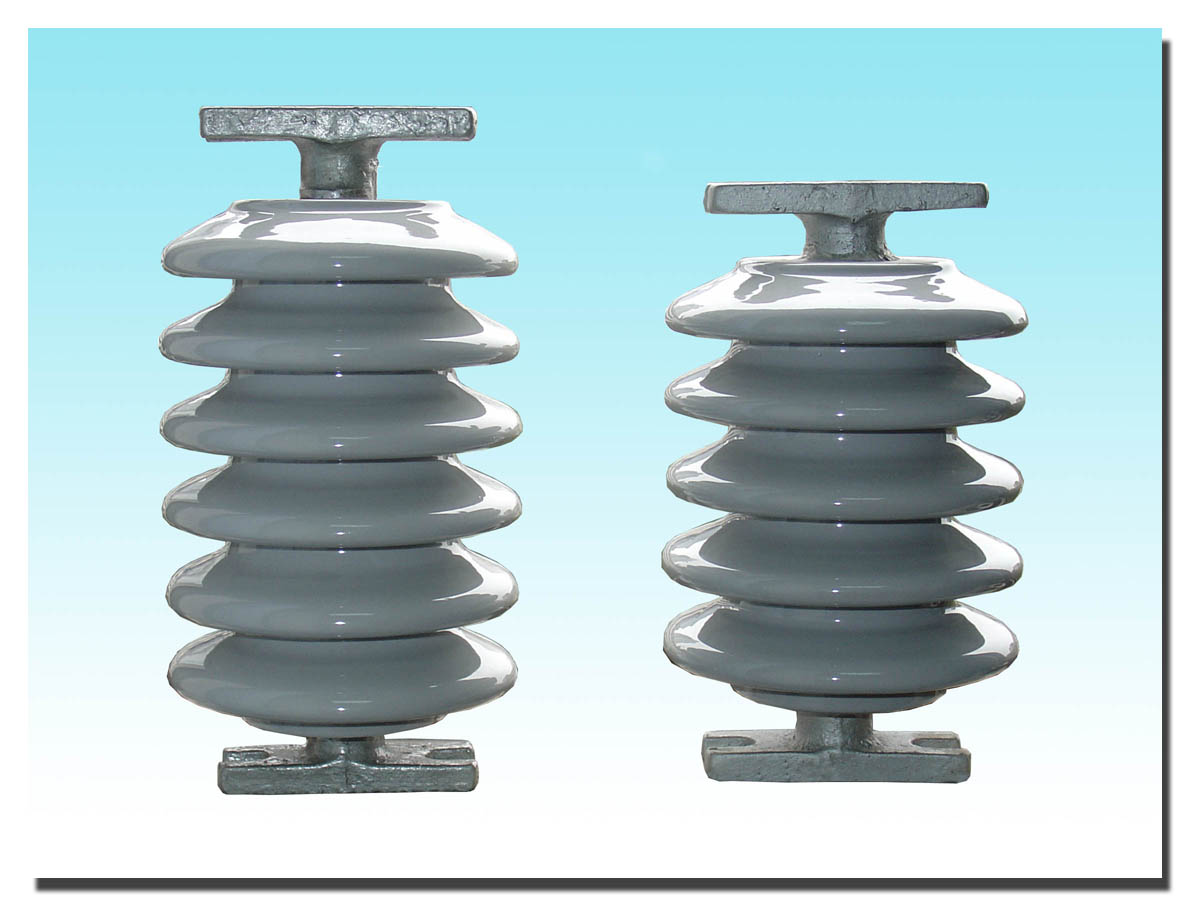

KEIMC manufacturers the porcelain
insulators for disconnectors. The insulators are
manufactured and tested to the requirements of
costomer's specifications and drawings. Standard
color is sky gray, with chocolate or white available
upon request. KEIMC also can supply the metal
fittings for the disconnector insulators according
to customer's specifications
| |
|
For the best view and print-out quality, download
(or open-file) the catalog pages in "Portable
Document Format" (PDF). (Click |
|
icons) |
| Cat No |
Reference |
Cantilever
Strength(Kgs) |
Creepage Distance
(mm) |
Drawing |
541099 |
DI-1099 |
344 |
460 |
|
541100 |
DI-1100 |
295 |
550 |
|
5410100 |
DI-10100 |
275 |
610 |
|

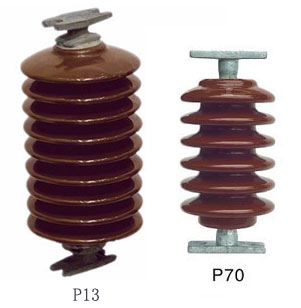

| 5410P70 |
P70 |
364 |
500 |
 |
|
5410P14 |
P13 |
219 |
1000 |
|
5416252 |
DD-16252E |
Metal Fitting |
´´´´´ |
|
5416254 |
DD-16254E |
Metal Fitting |
´´´´´ |
|
